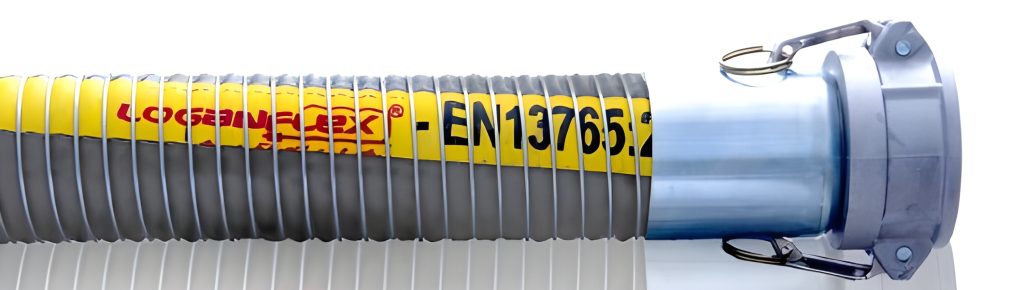

Chemical Composite Hose

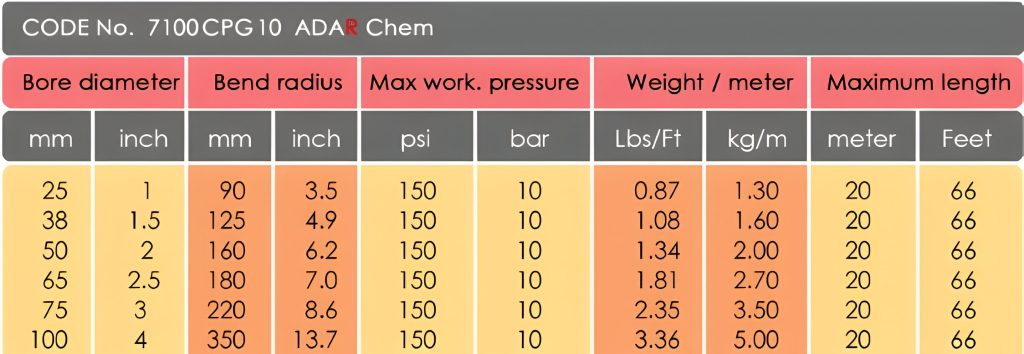

CODE No. 7100 CPG10 CHEM
Inner wire
Linnig
Outer Cover
Colour Code
Outer Wire
Working Pressure
Max.Elongation
Maximim Twist
Vacuum Range
Elect.resistance
: Polypropylene coated steel
: PP Fabric
: PVC Coated Fabric
: Gray with yellow stripe
: Galvanised steel
: 10 Bar
: 10% on proof pressure
: 10°/mtr
: 0.9 bar
: 2.5 Ohms/mtr<2″ Hose 1.0 Ohms/mtr>2″Hose
DESCRIPTION
Composite hose has a spiral internal and external metal supporting wire which can be galvanized steel, stainless steel or polypropylene coated steel. In between the wires there are polypropylene fabrics and films with an abrasion resistant PVC coated fabric cover. The hose contains a barrier layer for 100% aromatic hydrocarbons
PRINCIPAL APPLICATIONS
Chemical hoses are lightweight and flexibility are essentially designed for chemical utility hose for chemical plants, refineries, paint producers,paper mills and many other-in-plant,liqiuid tranfer operations,also rail car loading and tank truck loading and delivery,stroage tank transfer,refinery process and can handle highly corrosive acids, alkalies,aldehydes,aminies,aliphatic,aromatic fuels,chlorinated hydrocarbins, alcohol's, esters, ketones, lacquers and pertoleum products at rated discharge pressure orat full suction. 4:1 safety Factor, ISO Approved.
CLASSIFICATION
Chemical Group 2 Hose
COLOUR CODE
Gray color with yellow strip
MANUFACTURE
Manufactured to the specification where applicable to EN 13765:2018, BS5842:1980 & USCG, IMO,ECH, IBC Codes and Regulations-Type 2
TEMPERATURE
Depending on the conveyant -30°C to+80°C refer to Chemical Compatibilty Chart

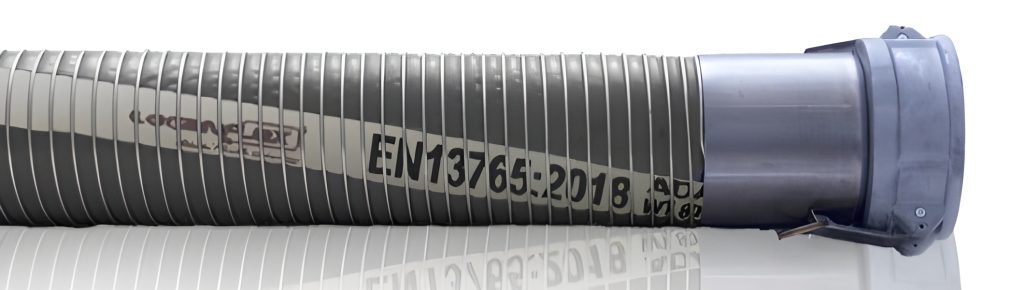

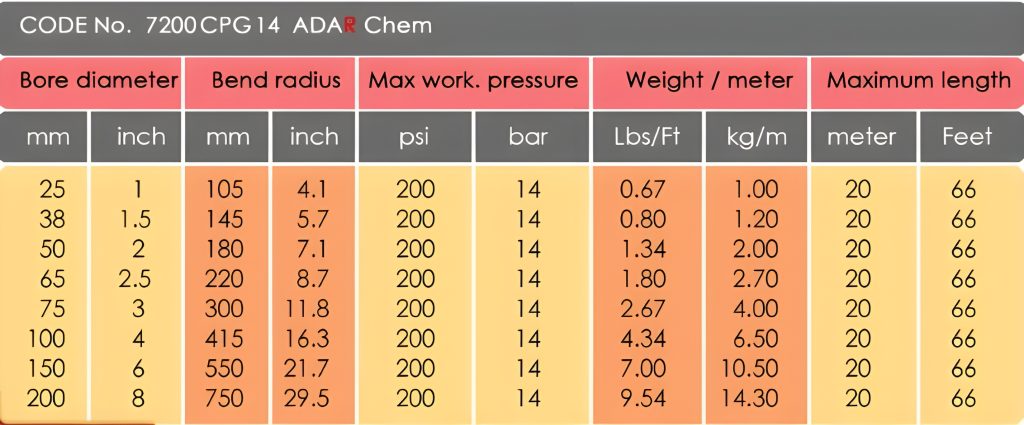

CODE No. 7200 CPG14 CHEM
Inner wire
Linnig
Outer Cover
Colour Code
Outer Wire
Working Pressure
Max.Elongation
Maximim Twist
Vacuum Range
Elect.resistance
: Polypropylene coated steel
: PP Fabric
: PVC Coated Fabric
: Gray with white stripe
: Galvanised steel
: 14 Bar
: 10% on proof pressure
: 10°/mtr
: 0.9 bar
: 2.5 Ohms/mtr<2″ Hose 1.0 Ohms/mtr>2″Hose
DESCRIPTION
Composite hose has a spiral internal and external metal supporting wire which can be galvanized steel, stainless steel or polypropylene coated steel. In between the wires there are polypropylene fabrics and films with an abrasion resistant PVC coated fabric cover. The hose contains a barrier layer for 100% aromatic hydrocarbons
PRINCIPAL APPLICATIONS
Chemical hoses are lightweight and flexibility are essentially designed for chemical utility hose for chemical plants, refineries, paint producers,paper mills and many other-in-plant,liqiuid tranfer operations,also rail car loading and tank truck loading and delivery,stroage tank transfer,refinery process and can handle highly corrosive acids, alkalies,aldehydes,aminies,aliphatic,aromatic fuels,chlorinated hydrocarbins, alcohol's, esters, ketones, lacquers and pertoleum products at rated discharge pressure orat full suction. 5:1 safety Factor,ISO Approved.
CLASSIFICATION
Chemical Group 2 Hose
COLOUR CODE
Gray color with white strip
MANUFACTURE
Manufactured to the specification where applicable to EN 13765:2018,BS5842:1980 & USCG, IMO,ECH, IBC Codes and Regulations-Type 3
TEMPERATURE
Depending on the conveyant -30°C to+80°C refer to Chemical Compatibilty Chart

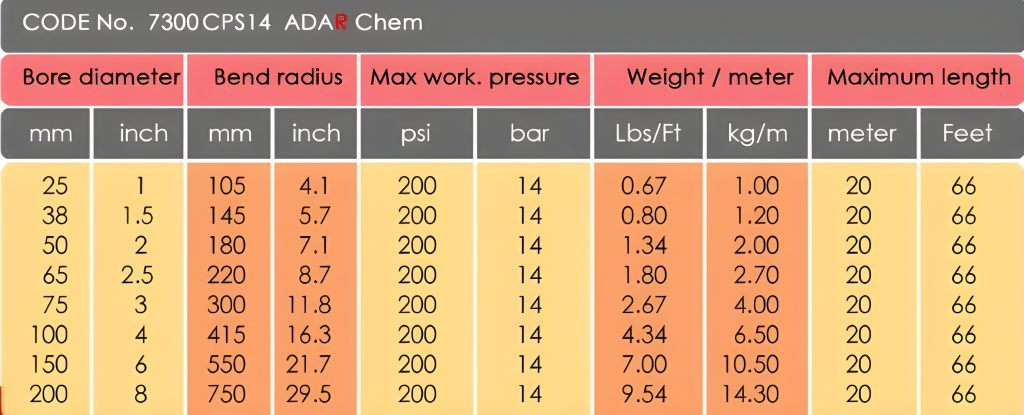

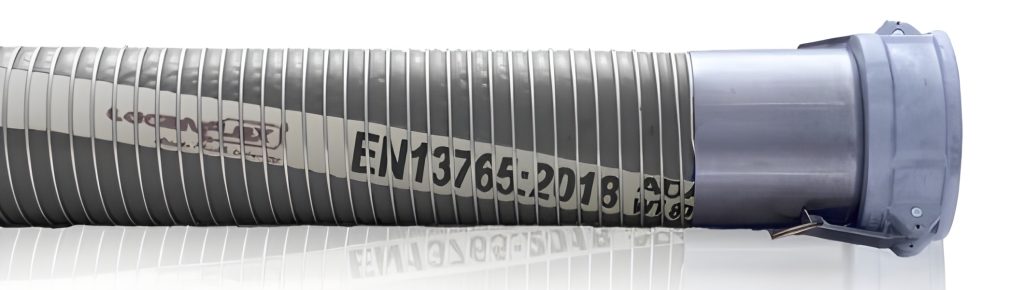

CODE No. 7300 CPG14 CHEM
Inner wire
Linnig
Outer Cover
Colour Code
Outer Wire
Working Pressure
Max.Elongation
Maximim Twist
Vacuum Range
Elect.resistance
: Polypropylene coated steel
: PP Fabric
: PVC Coated Fabric
: Gray with white stripe
: Stainless steel 316
: 14 Bar
: 10% on proof pressure
: 10°/mtr
: 0.9 bar
: 2.5 Ohms/mtr<2″ Hose 1.0 Ohms/mtr>2″Hose
DESCRIPTION
Composite hose has a spiral internal and external metal supporting wire which can be galvanized steel, stainless steel or polypropylene coated steel. In between the wires there are polypropylene fabrics and films with an abrasion resistant PVC coated fabric cover. The hose contains a barrier layer for 100% aromatic hydrocarbons
PRINCIPAL APPLICATIONS
Chemical hoses are lightweight and flexibility are essentially designed for chemical utility hose for chemical plants, refineries, paint producers,paper mills and many other-in-plant,liqiuid tranfer operations,also rail car loading and tank truck loading and delivery,stroage tank transfer,refinery process and can handle highly corrosive acids, alkalies,aldehydes,aminies,aliphatic,aromatic fuels,chlorinated hydrocarbins, alcohol's, esters, ketones, lacquers and pertoleum products at rated discharge pressure orat full suction. 5:1 safety Factor,ISO Approved.
CLASSIFICATION
Chemical Group 3 Hose
COLOUR CODE
Gray color with white strip
MANUFACTURE
Manufactured to the specification where applicable to EN 13765:2018,BS5842:1980 & USCG, IMO,ECH, IBC Codes and Regulations-Type 3
TEMPERATURE
Depending on the conveyant -30°C to+80°C refer to Chemical Compatibilty Chart

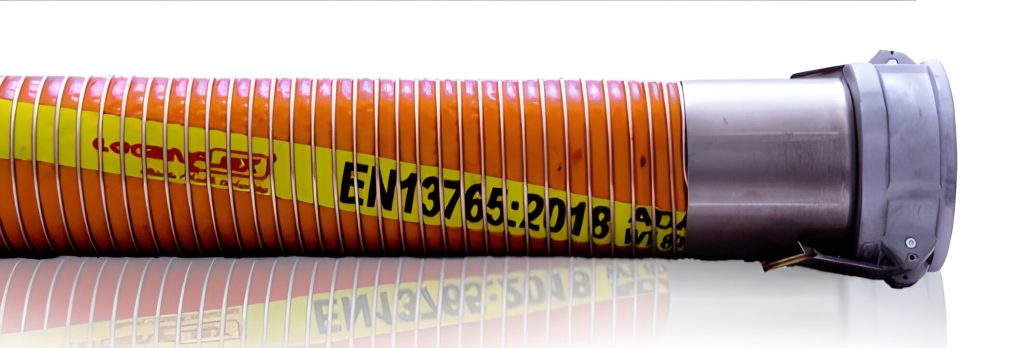

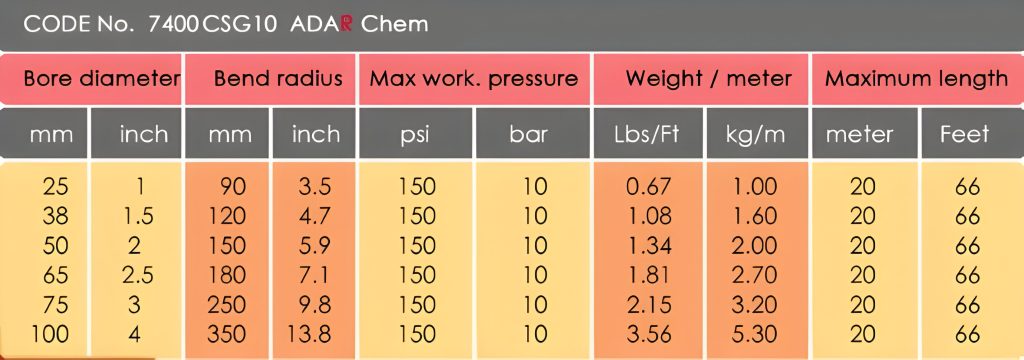

CODE No. 7400 CSG10 CHEM
Inner wire
Linnig
Outer Cover
Colour Code
Outer Wire
Working Pressure
Max.Elongation
Maximim Twist
Vacuum Range
Elect.resistance
: Stainless Steel 316
: PP Fabric
: PVC Coated Fabric
: Orange with yellow stripe
: Galvanised steel
: 10 Bar
: 10% on proof pressure
: 10°/mtr
: 0.9 bar
: 2.5 Ohms/mtr<2″ Hose 1.0 Ohms/mtr>2″Hose
DESCRIPTION
Composite hose has a spiral internal and external metal supporting wire which can be galvanized steel, stainless steel or polypropylene coated steel. In between the wires there are polypropylene fabrics and films with an abrasion resistant PVC coated fabric cover. The hose contains a barrier layer for 100% aromatic hydrocarbons
PRINCIPAL APPLICATIONS
Chemical hoses are lightweight and flexibility are essentially designed for chemical utility hose for chemical plants, refineries, paint producers,paper mills and many other-in-plant,liqiuid tranfer operations,also rail car loading and tank truck loading and delivery,stroage tank transfer,refinery process and can handle highly corrosive acids, alkalies,aldehydes,aminies,aliphatic,aromatic fuels,chlorinated hydrocarbins, alcohol's, esters, ketones, lacquers and pertoleum products at rated discharge pressure orat full suction. 4:1 safety Factor,ISO Approved.
CLASSIFICATION
Chemical Group 3 Hose
COLOUR CODE
Orange color with yellow strip
MANUFACTURE
Manufactured to the specification where applicable to EN 13765:2018,BS5842:1980 & USCG, IMO,ECH, IBC Codes and Regulations-Type 3
TEMPERATURE
Depending on the conveyant -30°C to+80°C refer to Chemical Compatibilty Chart

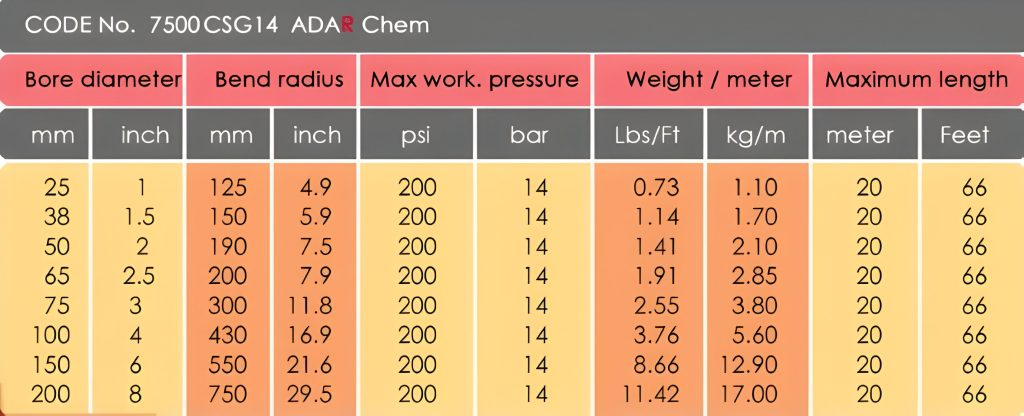

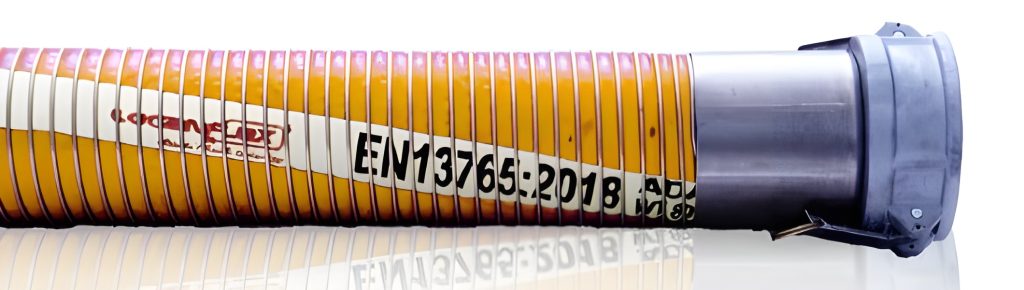

CODE No. 7500 CSG14 CHEM
Inner wire
Linnig
Outer Cover
Colour Code
Outer Wire
Working Pressure
Max.Elongation
Maximim Twist
Vacuum Range
Elect.resistance
: Stainless Steel 316
: PP Fabric
: PVC Coated Fabric
: Orange with White stripe
: Galvanised steel
: 14 Bar
: 10% on proof pressure
: 10°/mtr
: 0.9 bar
: 2.5 Ohms/mtr<2″ Hose 1.0 Ohms/mtr>2″Hose
DESCRIPTION
Composite hose has a spiral internal and external metal supporting wire which can be galvanized steel, stainless steel or polypropylene coated steel. In between the wires there are polypropylene fabrics and films with an abrasion resistant PVC coated fabric cover. The hose contains a barrier layer for 100% aromatic hydrocarbons
PRINCIPAL APPLICATIONS
Chemical hoses are lightweight and flexibility are essentially designed for chemical utility hose for chemical plants, refineries, paint producers,paper mills and many other-in-plant,liqiuid tranfer operations,also rail car loading and tank truck loading and delivery,stroage tank transfer,refinery process and can handle highly corrosive acids, alkalies,aldehydes,aminies,aliphatic,aromatic fuels,chlorinated hydrocarbins, alcohol's, esters, ketones, lacquers and pertoleum products at rated discharge pressure orat full suction. 5:1 safety Factor,ISO Approved.
CLASSIFICATION
Chemical Group 3 Hose
COLOUR CODE
Orange color with White strip
MANUFACTURE
Manufactured to the specification where applicable to EN 13765:2018,BS5842:1980 & USCG, IMO,ECH, IBC Codes and Regulations-Type 3
TEMPERATURE
Depending on the conveyant -30°C to+80°C refer to Chemical Compatibilty Chart

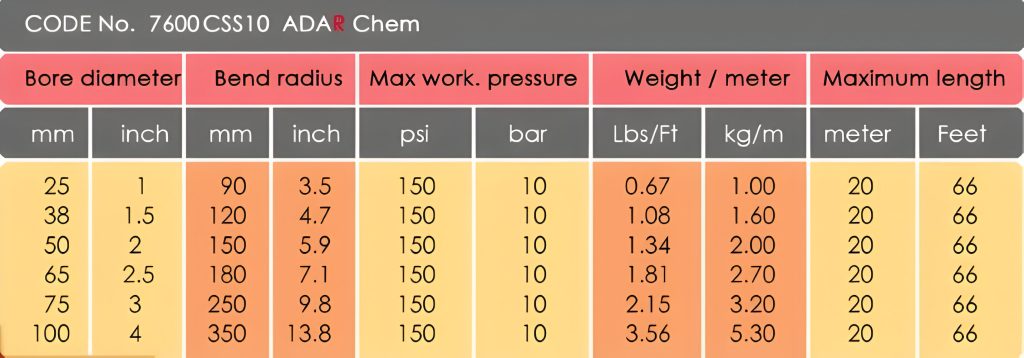

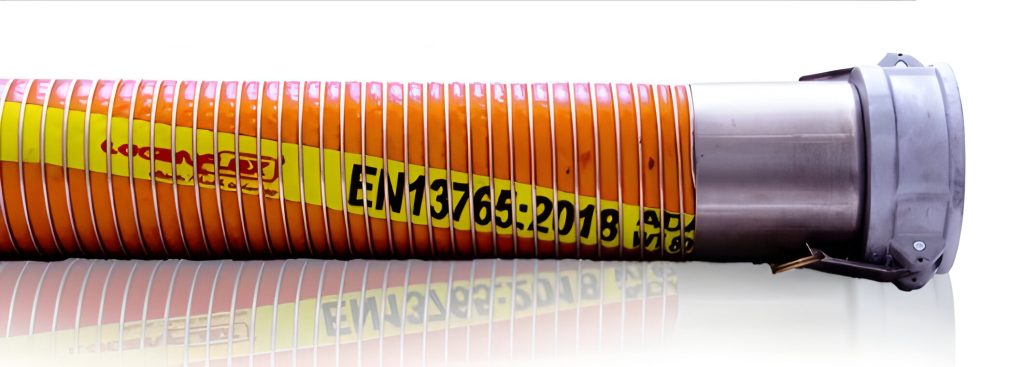

CODE No. 7600 CSS10 CHEM
Inner wire
Linnig
Outer Cover
Colour Code
Outer Wire
Working Pressure
Max.Elongation
Maximim Twist
Vacuum Range
Elect.resistance
: Stainless Steel 316
: PP Fabric
: PVC Coated Fabric
: Orange with Yellow stripe
: Stainless steel
: 10 Bar
: 10% on proof pressure
: 10°/mtr
: 0.9 bar
: 2.5 Ohms/mtr<2″ Hose 1.0 Ohms/mtr>2″Hose
DESCRIPTION
Composite hose has a spiral internal and external metal supporting wire which can be galvanized steel, stainless steel or polypropylene coated steel. In between the wires there are polypropylene fabrics and films with an abrasion resistant PVC coated fabric cover. The hose contains a barrier layer for 100% aromatic hydrocarbons
PRINCIPAL APPLICATIONS
Chemical hoses are lightweight and flexibility are essentially designed for chemical utility hose for chemical plants, refineries, paint producers,paper mills and many other-in-plant,liqiuid tranfer operations,also rail car loading and tank truck loading and delivery,stroage tank transfer,refinery process and can handle highly corrosive acids, alkalies,aldehydes,aminies,aliphatic,aromatic fuels,chlorinated hydrocarbins, alcohol's, esters, ketones, lacquers and pertoleum products at rated discharge pressure orat full suction. 4:1 safety Factor,ISO Approved.
CLASSIFICATION
Chemical Group 3 Hose
COLOUR CODE
Orange color with White strip
MANUFACTURE
Manufactured to the specification where applicable to EN 13765:2018,BS5842:1980 & USCG, IMO,ECH, IBC Codes and Regulations-Type 3
TEMPERATURE
Depending on the conveyant -30°C to+80°C refer to Chemical Compatibilty Chart

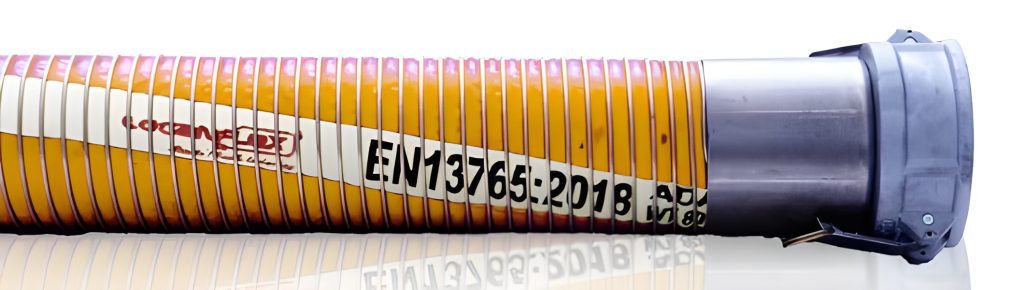

CODE No. 7700 CSS14 CHEM
Inner wire
Linig
Outer Cover
Colour Code
Outer Wire
Working Pressure
Max.Elongation
Maximim Twist
Vacuum Range
Elect.resistance
: Stainless Steel 316
: PP Fabric
: PVC Coated Fabric
: Orange with Yellow stripe
: Stainless steel
: 14 Bar
: 10% on proof pressure
: 10°/mtr
: 0.9 bar
: 2.5 Ohms/mtr<2″ Hose 1.0 Ohms/mtr>2″Hose
DESCRIPTION
Composite hose has a spiral internal and external metal supporting wire which can be galvanized steel, stainless steel or polypropylene coated steel. In between the wires there are polypropylene fabrics and films with an abrasion resistant PVC coated fabric cover. The hose contains a barrier layer for 100% aromatic hydrocarbons
PRINCIPAL APPLICATIONS
Chemical hoses are lightweight and flexibility are essentially designed for chemical utility hose for chemical plants, refineries, paint producers,paper mills and many other-in-plant,liqiuid tranfer operations,also rail car loading and tank truck loading and delivery,stroage tank transfer,refinery process and can handle highly corrosive acids, alkalies,aldehydes,aminies,aliphatic,aromatic fuels,chlorinated hydrocarbins, alcohol's, esters, ketones, lacquers and pertoleum products at rated discharge pressure orat full suction. 5:1 safety Factor,ISO Approved.
CLASSIFICATION
Chemical Group 3 Hose
COLOUR CODE
Orange color with White strip
MANUFACTURE
Manufactured to the specification where applicable to EN 13765:2018,BS5842:1980 & USCG, IMO,ECH, IBC Codes and Regulations-Type 3
TEMPERATURE
Depending on the conveyant -30°C to+80°C refer to Chemical Compatibilty Chart
