Petroleum Composite Hose

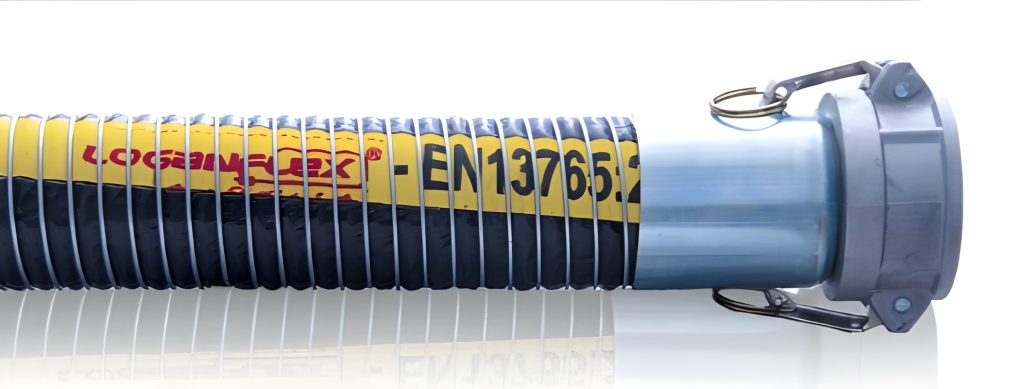

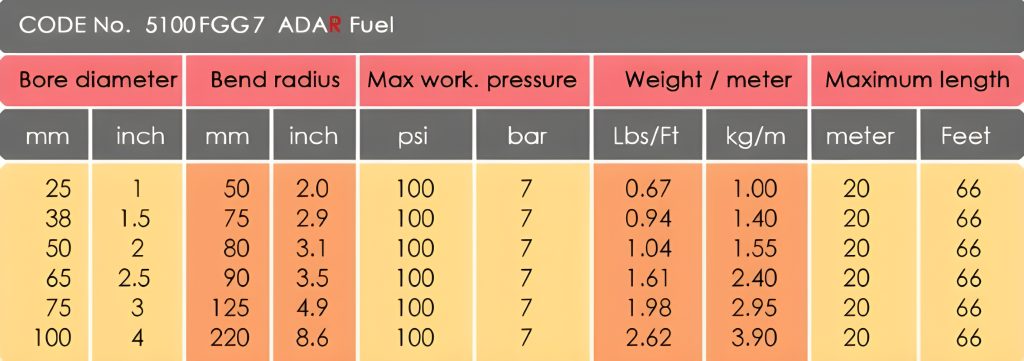

CODE No. 5100 FGG7 FUEL
Inner wire
Linnig
Outer Cover
Color Code
Outer Wire
Working Pressure
Max.Elongation
Maximim Twist
Vacuum Range
Elect.resistance
: Galvanised steel
: Polypropylene Fabric
: PVC Coated Fabric
: Black with yellow stripe
: Galvanised steel
: 07 Bar
: 10% on proof pressure
: 10°/mtr
: 0.9 bar
: 2.5 Ohms/mtr<2″ Hose 1.0 Ohms/mtr>2″Hose
DESCRIPTION
Composite hose has a spiral internal and external metal supporting wire which can be galvanized steel, stainless steel or polypropylene coated steel. In between the wires there are polypropylene fabrics and films with an abrasion resistant PVC coated fabric cover. The hose contains a barrier layer for 100% aromatic hydrocarbons
PRINCIPAL APPLICATIONS
Fuel hoses are designed for a wide range of fuel, oil and lubricant applications where light weight and flexibilty are essential, i.e rail car and tank truck loading and delivery, storage tank transfer, refinery process, drumming manifolding, batching and blending. 4:1 Safety Factor, ISO Approved
CLASSIFICATION
Fuel and Oil Group 1 Hose
COLOUR CODE
Black color with yellow strip
MANUFACTURE
Manufactured to the specification where applicable to EN 13765:2018, BS5842:1980 & USCG, IMO, ECH, IBC Codes and Regulations-Type 2
TEMPERATURE
Depending on the conveyant -30°C to+80°C refer to Chemical Compatibilty Chart

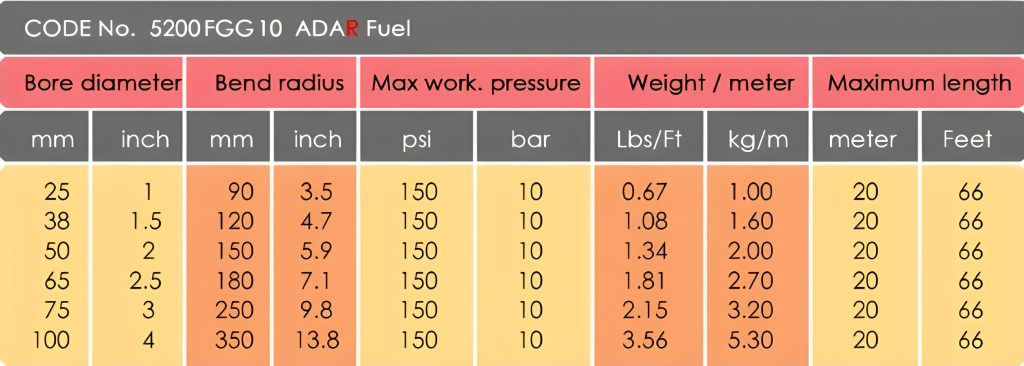

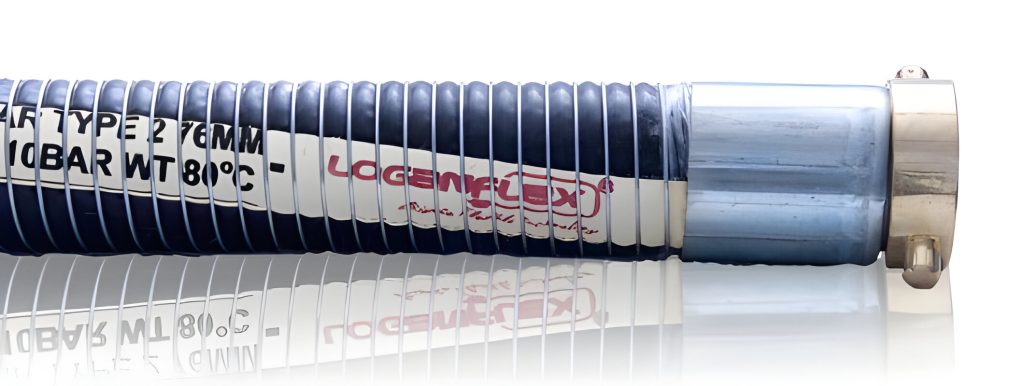

CODE No. 5200 FGG10 FUEL
Inner wire
Linig
Outer Cover
Colour Code
Outer Wire
Working Pressure
Max.Elongation
Maximim Twist
Vacuum Range
Elect.resistance
: Galvanised steel
: Polypropylene Fabric
: PVC Coated Fabric
: Black with yellow stripe
: Galvanised steel
: 10 Bar
: 10% on proof pressure
: 10°/mtr
: 0.9 bar
: 2.5 Ohms/mtr<2″ Hose 1.0 Ohms/mtr>2″Hose
DESCRIPTION
Composite hose has a spiral internal and external metal supporting wire which can be galvanized steel, stainless steel or polypropylene coated steel. In between the wires there are polypropylene fabrics and films with an abrasion resistant PVC coated fabric cover. The hose contains a barrier layer for 100% aromatic hydrocarbons.
PRINCIPAL APPLICATIONS
Fuel hoses are designed for a wide range of fuel, oil and lubricant applications where light weight and flexibilty are essential, i.e rail car and tank truck loading and delivery, storage tank transfer, refinery process, drumming manifolding, batching and blending. 5:1 Safety Factor, ISO Approved
CLASSIFICATION
Fuel and Oil Group 1 Hose
COLOUR CODE
Black color with White strip
MANUFACTURE
Manufactured to the specification where applicable to EN 13765:2018, BS5842:1980 & USCG, IMO, ECH, IBC Codes and Regulations-Type 2
TEMPERATURE
Depending on the conveyant -30°C to+80°C refer to Chemical Compatibilty Chart
